Design and build a pneumatic snowboard press
A custom pneumatic snowboard press combining innovative single-bladder technology with modular design to deliver professional-grade composite forming.
This project details the design, construction, and implementation of a pneumatic snowboard press system optimized, modularity, and pressing efficiency. The press incorporates a bolt-together frame design rated for 30 tons (operating at 6 tons), an innovative single-bladder pneumatic system, and Arduino-based temperature control. The resulting system produces high-quality thermocompression composites while maintaining simplified mold changeover procedures and reduced operational complexity compared to traditional multi-bladder designs.
The pneumatic press represents the most critical piece of equipment in snowboard manufacturing, both in physical scale and functional importance. This project aimed to develop a press system that balances structural integrity, operational safety, production efficiency, and high-quality thermo-composites.

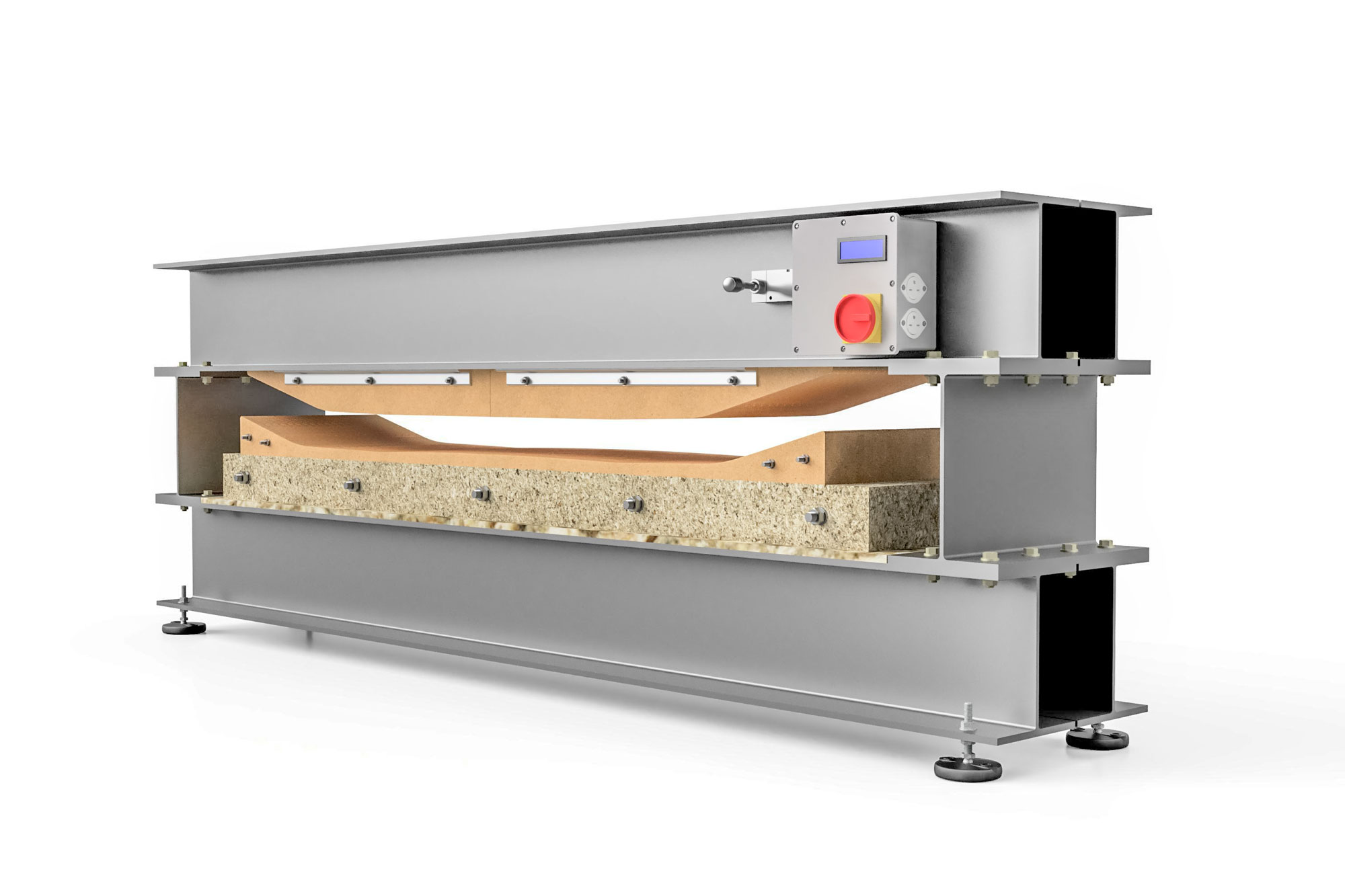

A bolt-together design was selected for its simplicity. This bolt-together approach facilitates assembly, maintenance, and potential future modifications.
The substantial safety margin ensures long-term structural integrity and allows for potential process expansion.

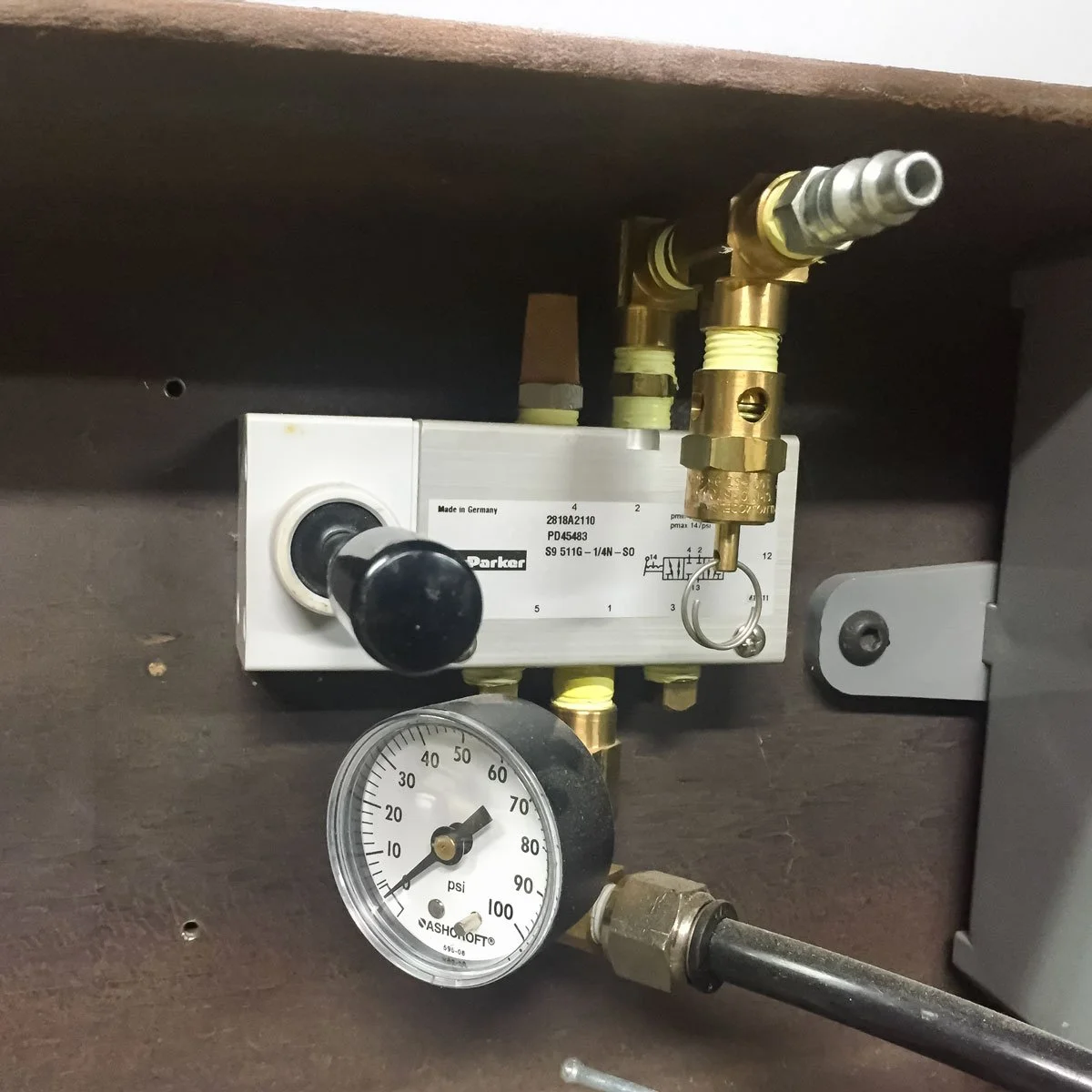

A manual 4-way pneumatic valve (3368K26) regulates air pressure throughout the system, providing operator control over compression cycles. This valve is very precise and easy to operate. Always use a bronze sintered exhaust muffler (4450K2) to save your hearing and sanity when deflating the press.

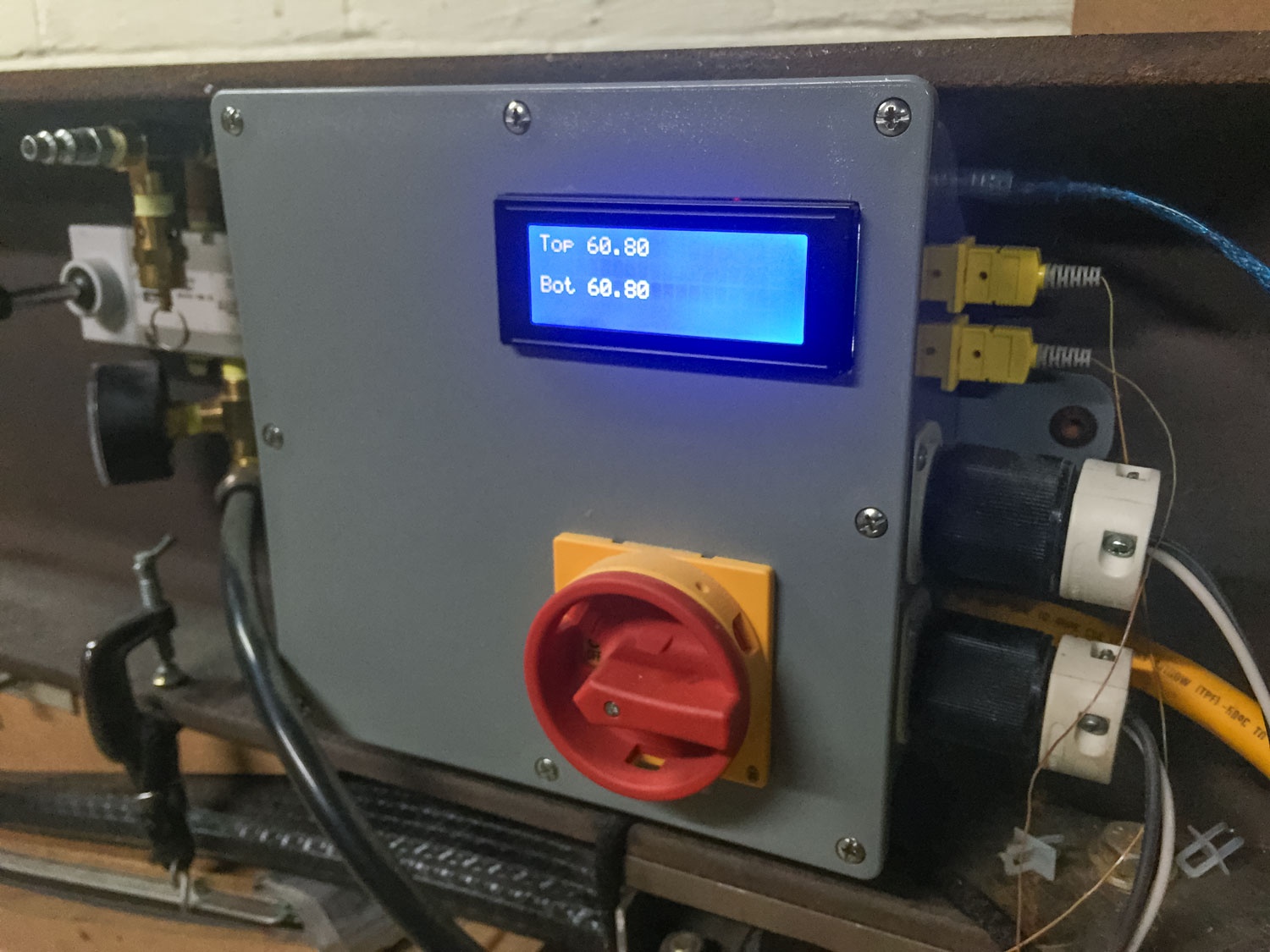

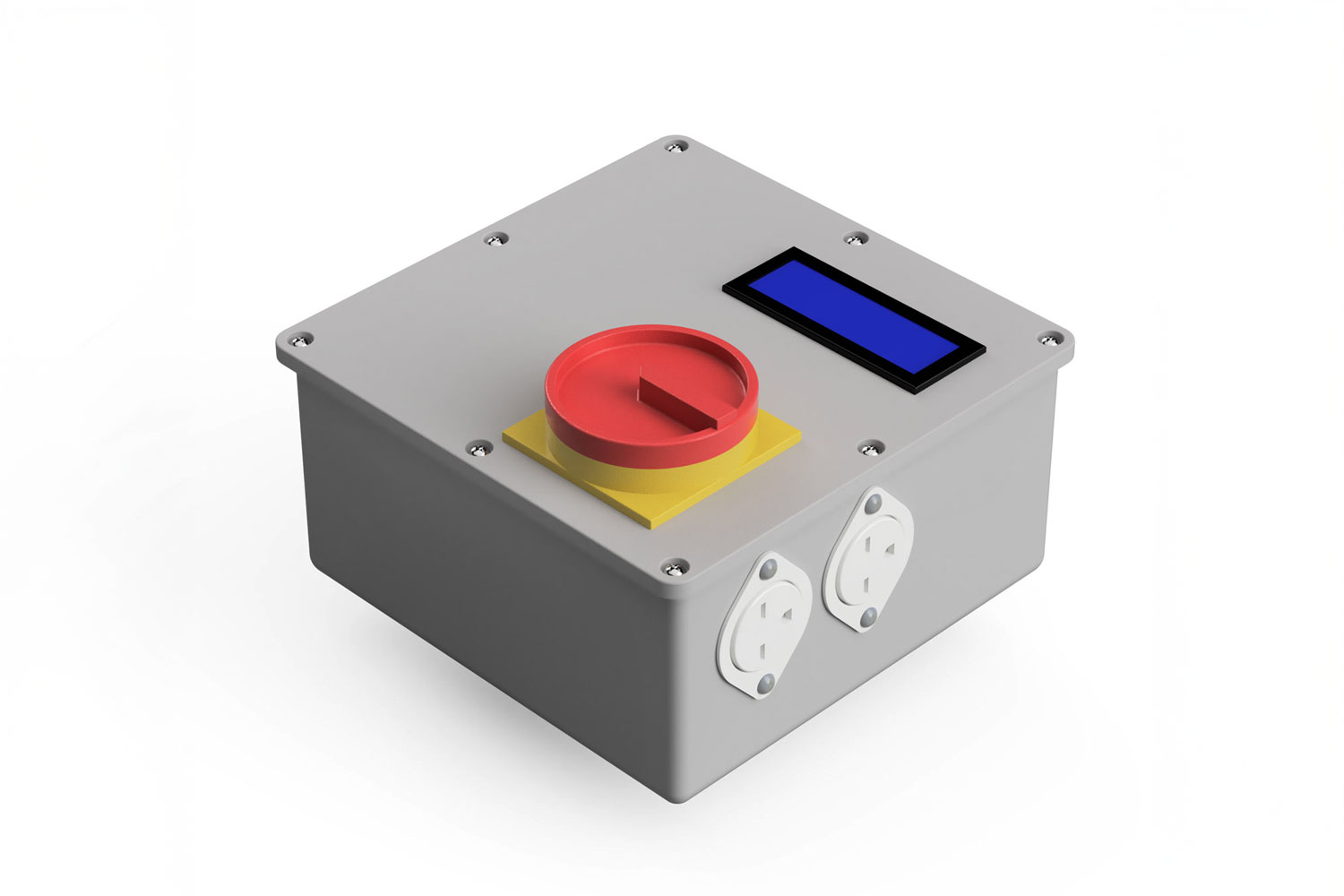

Temperature regulation is achieved through an Arduino-based controller managing two 25A SSRs into two silicone heat blankets operating at 240V. Two type K thermocouples were used, one for the top heat blanket and one for the bottom heat blanket. The Arduino platform was selected for its:
Alternative temperature controller options could be a 1/16 DIN temp controller or a Raspberry Pi. Use ChatGPT or your favorite AI to write the code and test until you have a system that works for your purpose.
No special programming for ramp up or ramp down was needed to make sound composites. Just turning the system on or off ramped the temperature perfectly for this application. Cure time started when the blankets reached full temp and ran the duration required by the resin. Cool down took some experimentation to not waste time. All times were controlled with a simple timer.

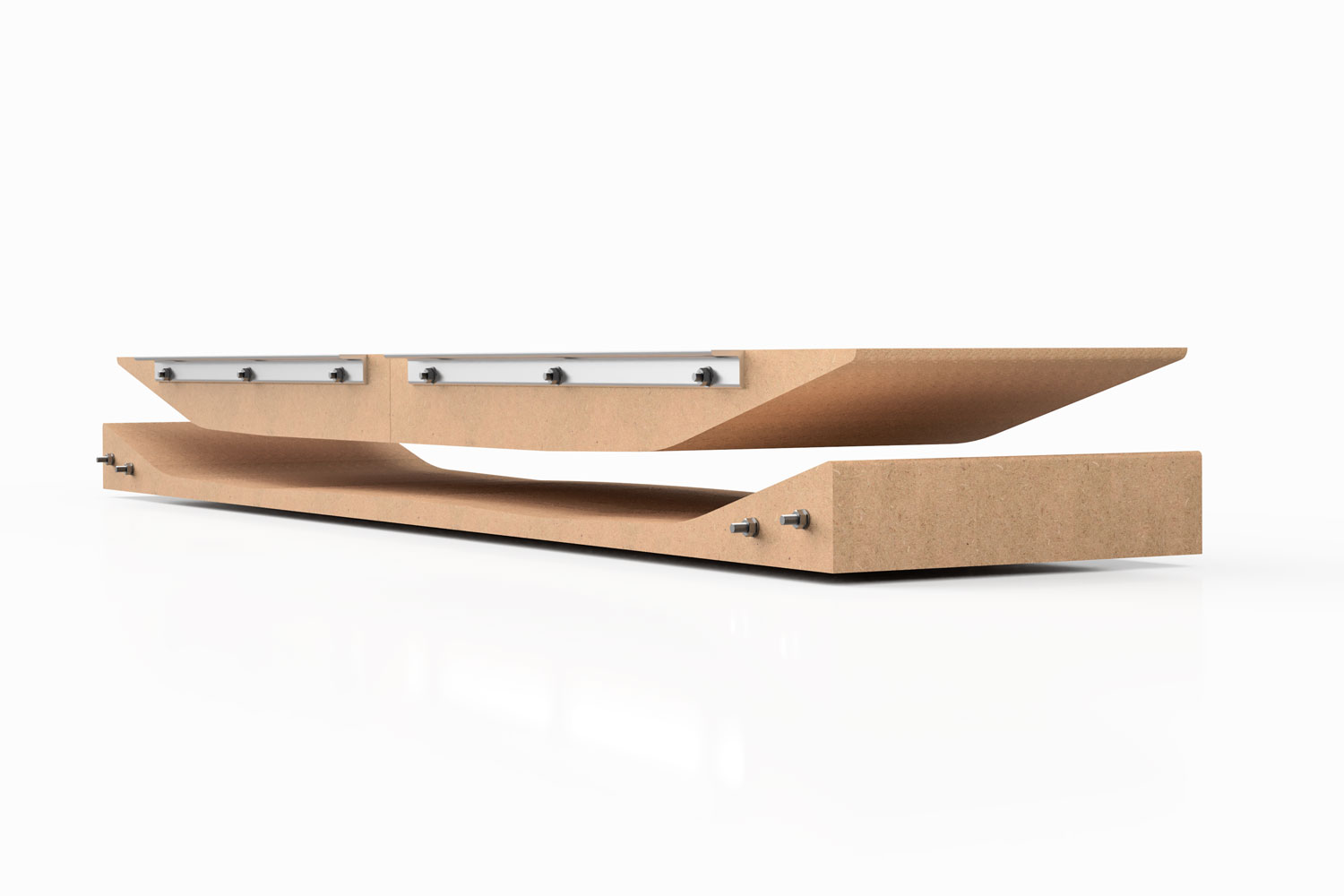

Molds define the geometric profile of a finished snowboard. Each board profile needs it's own mold so easy press changeover is a nice goal if you plan on pressing multiple board sizes or profiles.
Medium-Density Fiberboard (MDF) was selected as the mold material based on:
Molds were designed with minimal material usage to achieve three primary objectives:
A CNC-machined, vertically laminated particle board block serves as the base platform, providing a flat, stable surface to support the bottom mold during pressing operations.
Sourcing appropriate bladder components required significant research and procurement effort, ultimately proving essential to the system's performance advantages.

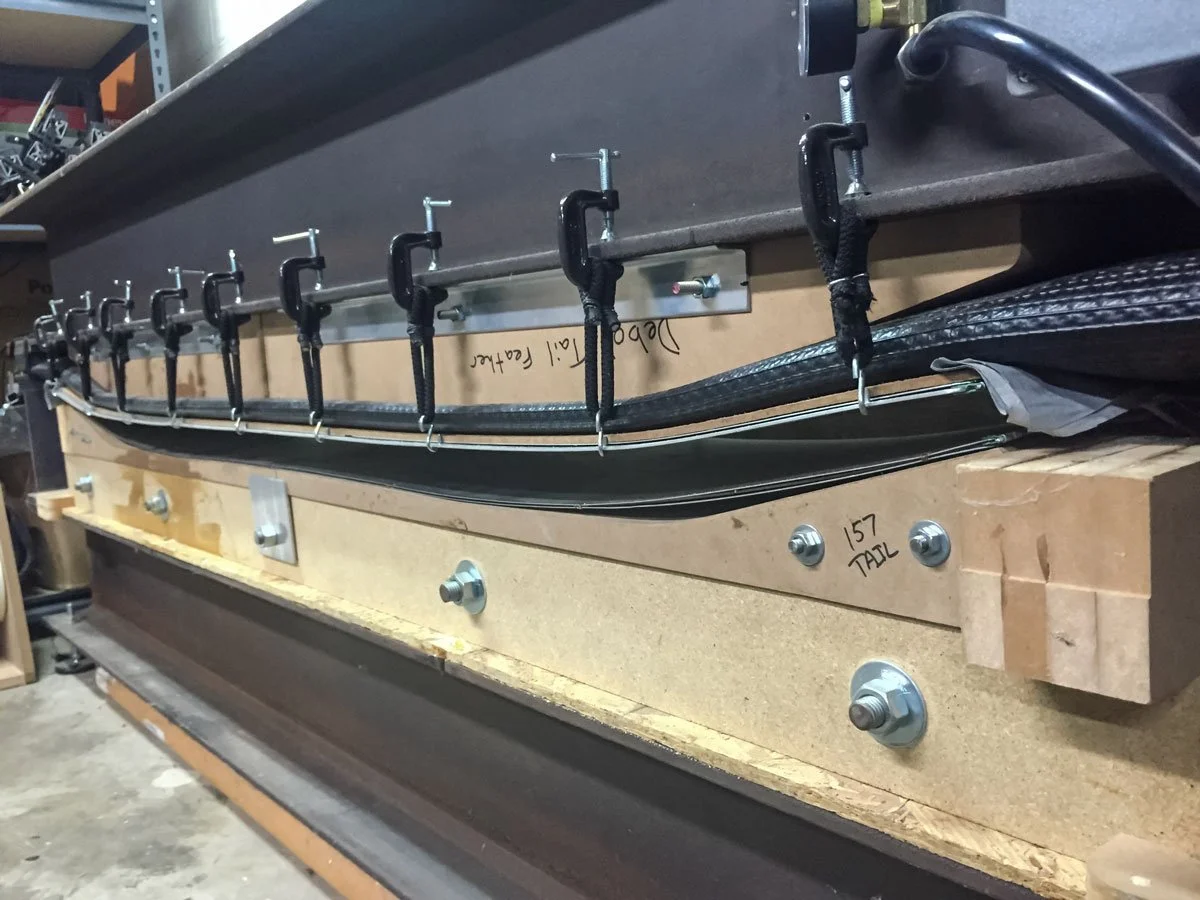

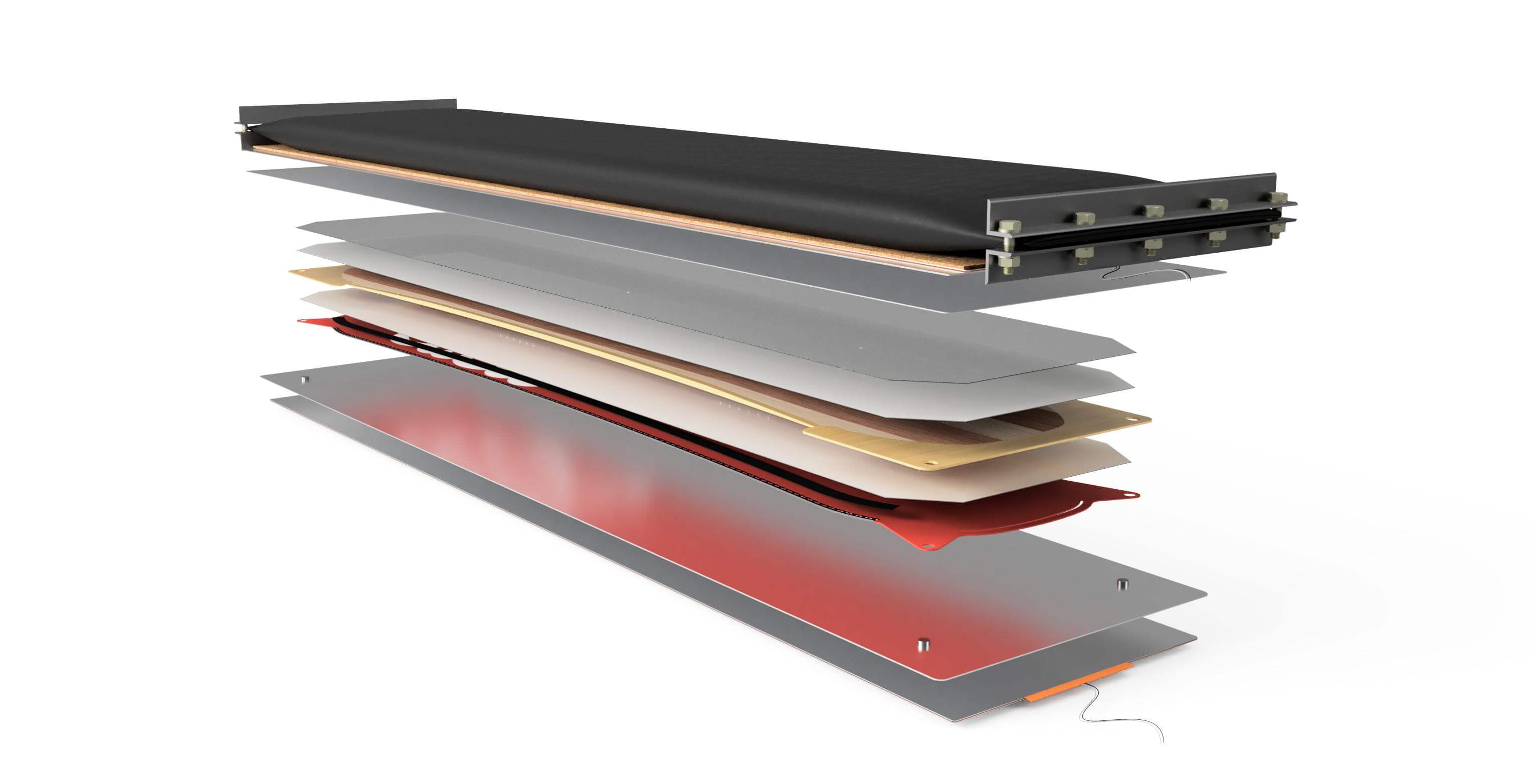

This project diverged from the industry-standard multi-bladder configuration by implementing a simplified single-bladder design. This innovation was enabled by:
The single-bladder approach delivered multiple operational advantages:

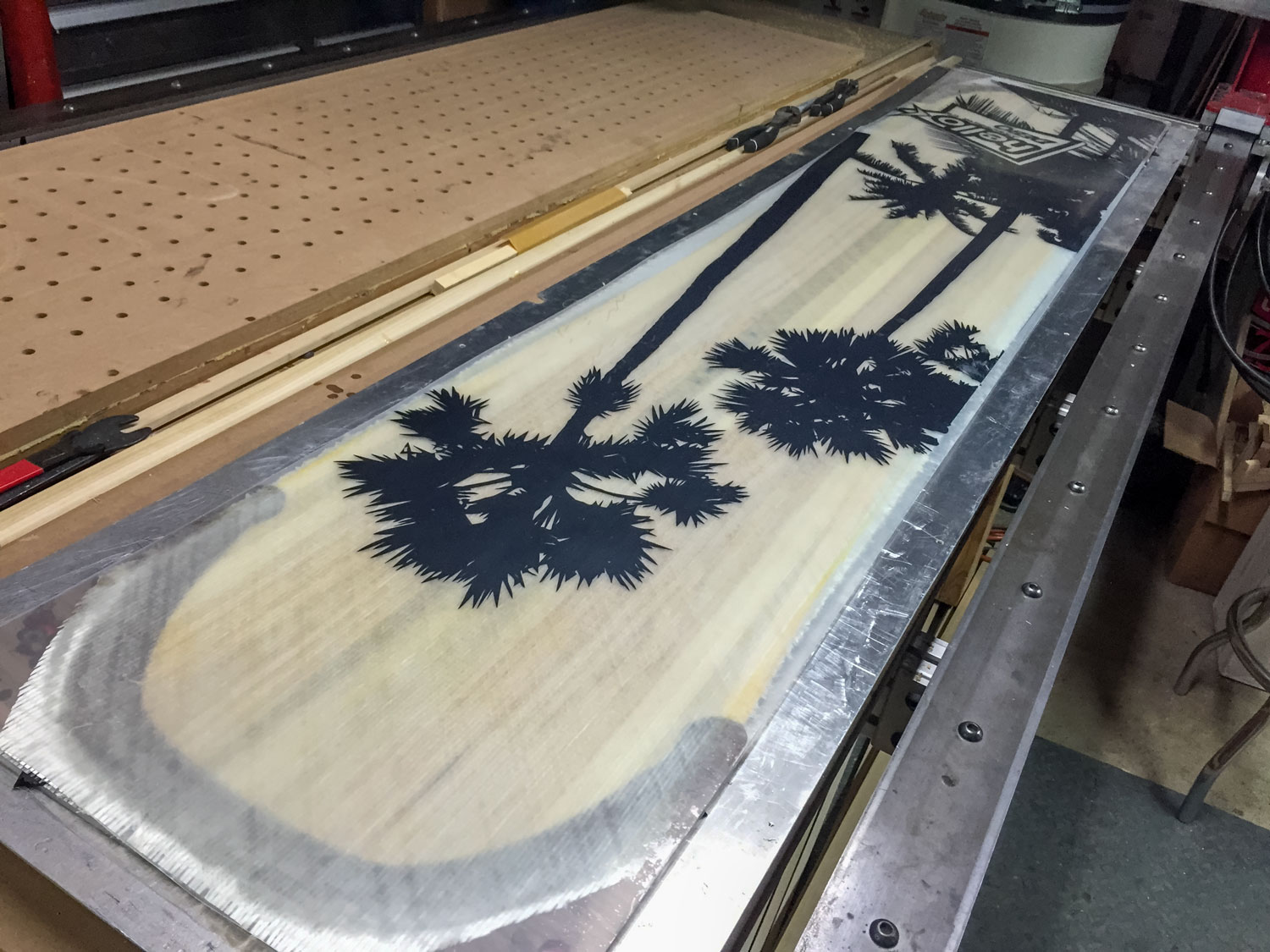

The cassette serves as the lamination platform, maintaining precise component positioning throughout the compression cycle as pressure develops.

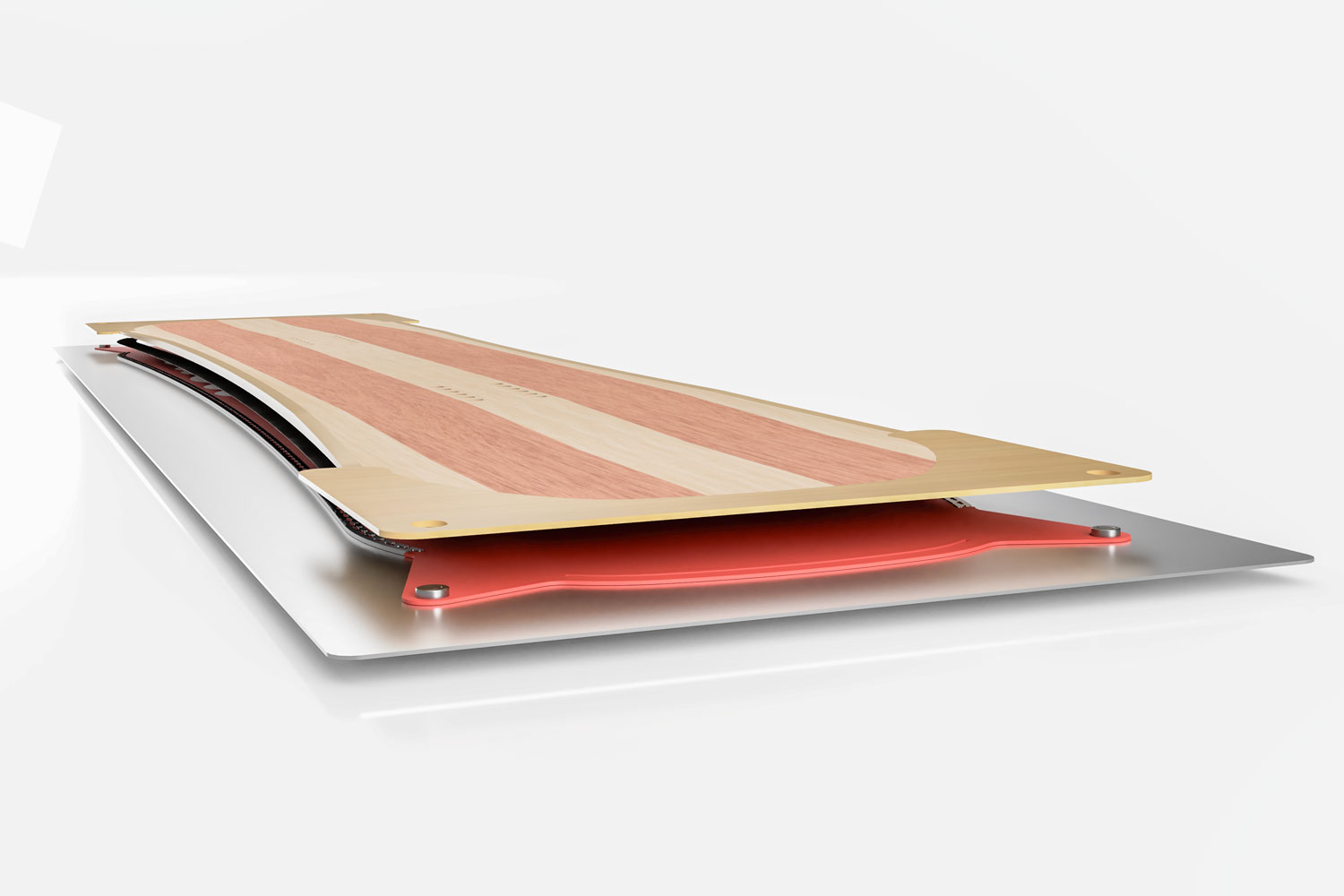

A streamlined design utilizing an aluminum sheet with positioning pins provides:

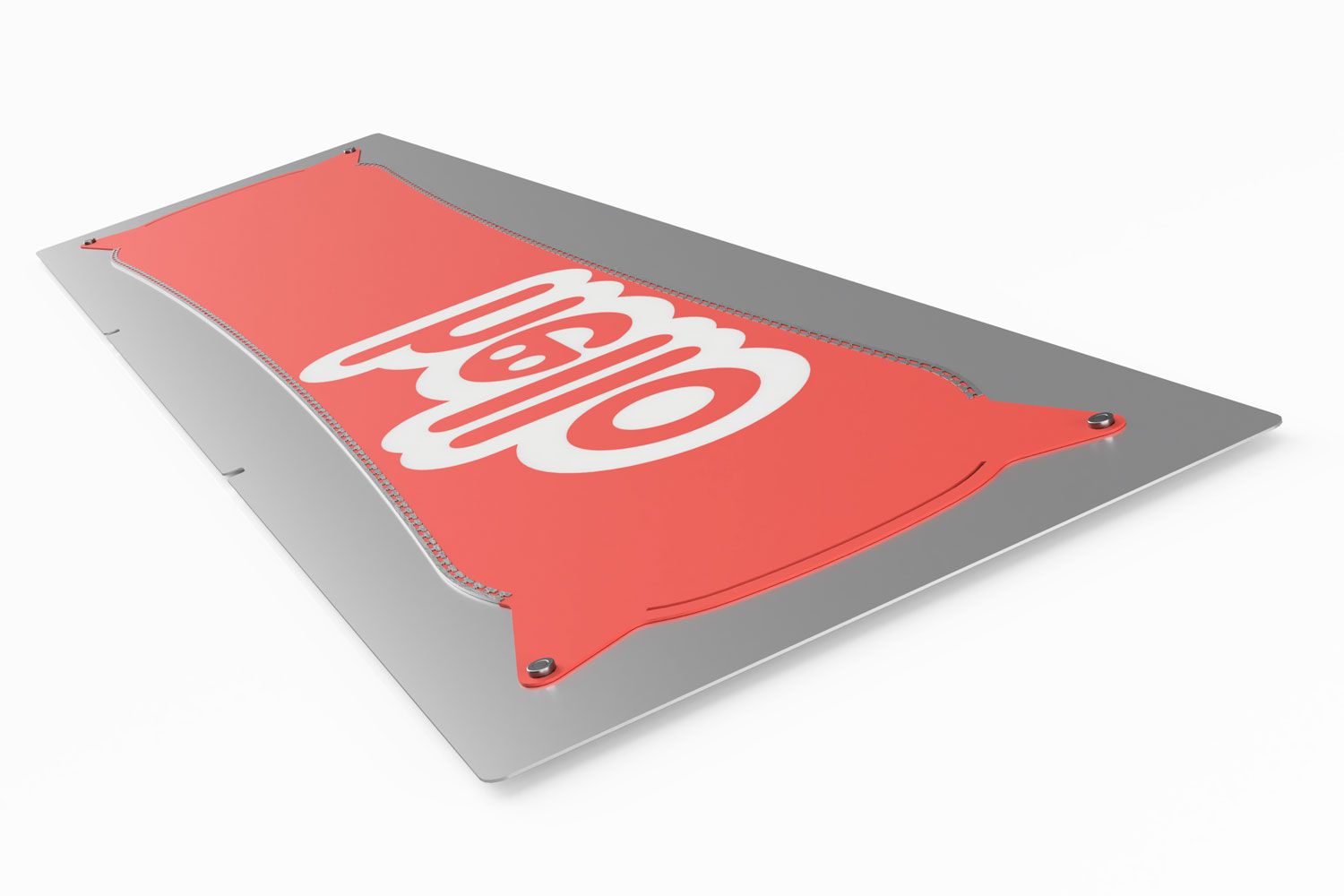

The cassette was referenced to the mold in the press using to post mounted to the particle board block supporting the lower mold. You can see two notches on the back edge of the cassette. These notches would match with the posts when the loaded cassette was slid into the press cavity. Once inserted pressure was added and they entire cassette stack was held firmly in place and reference properly to the mold.
The integrated press system successfully achieved all primary design objectives, demonstrating:
The simplified pressing mechanics, particularly the single-bladder system, consistently produces composites of exceptional quality, meeting or exceeding industry standards for snowboard construction.
Mold changeover procedures were significantly streamlined compared to traditional multi-bladder designs, directly improving production flexibility and throughput.
The project's success can be attributed to several key design decisions:
The press demonstrates strong economic performance through:
The Arduino-based control system and modular mechanical design provide clear pathways for:
The pneumatic snowboard press project successfully delivered a cost-effective, reliable, and modular manufacturing solution. By challenging industry-standard approaches, particularly through the innovative single-bladder design, the system achieves superior composite quality while maintaining operational simplicity.
The press's modular architecture and upgradeable control systems position it well for adaptation to evolving production requirements and future board designs. The straightforward mechanics of this pressing system consistently produce high-quality thermocompression composites, validating the design approach and demonstrating that simplified engineering can deliver professional-grade manufacturing capability.
| Parameter | Specification | Manufacturer |
|---|---|---|
| Design Load Capacity | 30 tons | — |
| Operational Load | 6 tons | — |
| Total System Weight | ~1,500 lbs | — |
| Main I-Beams | 4× W10x33, 96" long | — |
| Cross I-Beams | 2× W12x40, 16" long | — |
| Control Voltage | 240V | — |
| Heat Blankets | 2× MEI silicone | michaelsenterprises.com |
| Control System | Arduino-based | — |
| Pneumatic Control | Manual 4-way valve | — |
| Mold Material | MDF | — |
| Cassette Material | Aluminum sheet | — |
| Bladder Configuration | Single-bladder design | — |
